HARFINGTON 5pcs Carbide Square Nose End Mill Bit 7/64" Cut Dia 4 Flutes TiAlN Coated Milling Cutter for Hardened Steel Metal (7/64" Shank 3/8" Cut Length 1-1/2" Long 30 Degree HRC53-55)
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by seanmas.com.au
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by seanmas.com.au
Free 30-day returns Details
Product details
| Management number | 211139930 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211139930 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

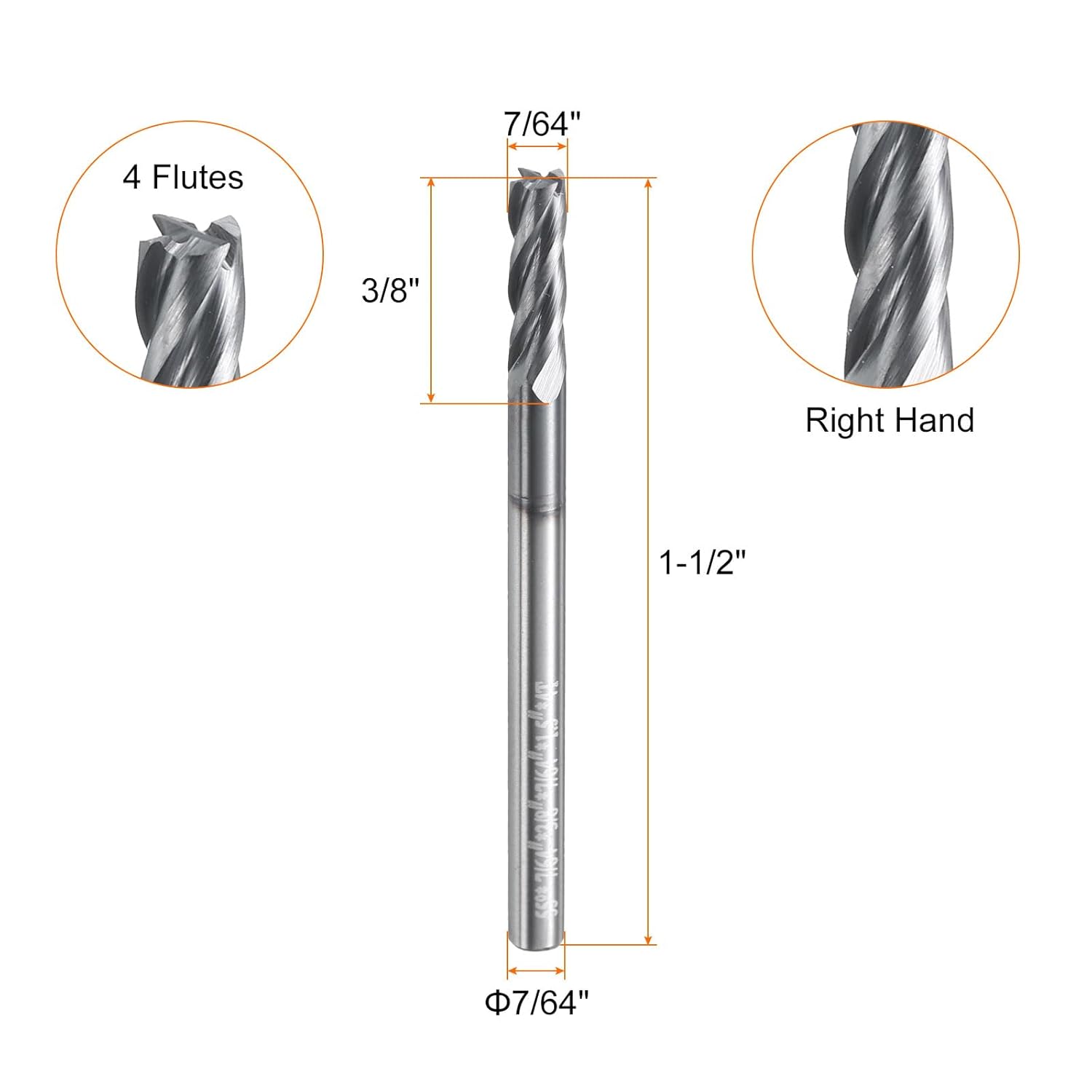

- Size - Cutting diameter: 7/64" (right hand); shank diameter: 7/64"; cutting length: 3/8"; total length: 1-1/2" (extra long); cutting hardness: HRC53-55; helix angle: 30 degree; number of flutes: 4 flutes. Make sure the end mill is suitable for the specific application and material being processed.

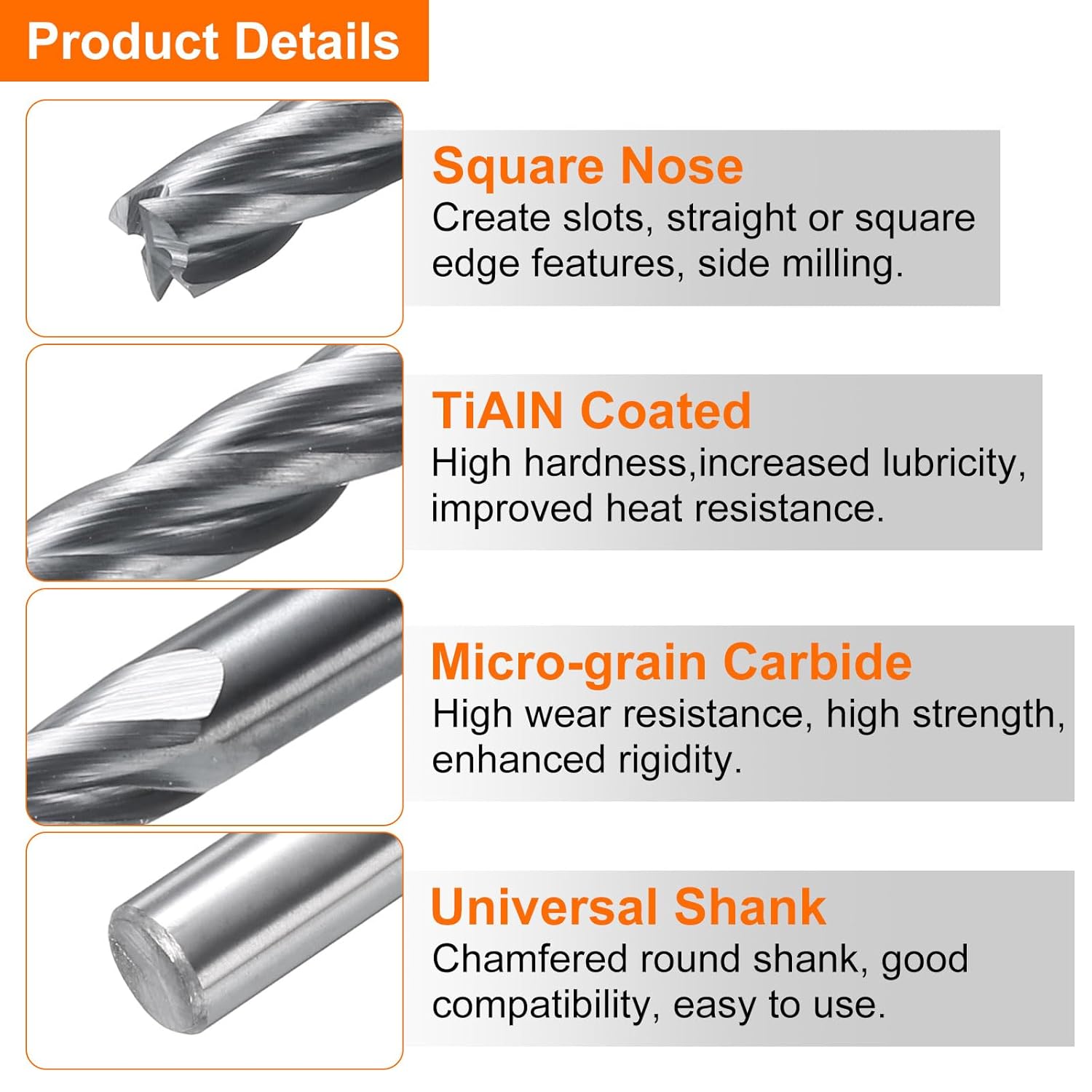

- Material - TiAlN (Titanium Aluminum Nitride) coating provides high hardness, increased lubricity, and improved heat resistance. Performs well under high-temperature cutting conditions and provides good wear resistance. Micro-grain carbide mill bit has high hardness, high wear resistance, high strength, enhanced rigidity and high temperature resistance.
- Features - Fully ground mirror body with high smoothness, 30 degree large helix angle for effective deburring and polishing, larger core diameter is not easy to break the edge. Precision ground cutting edges for clean, precise cuts. Universal chamfered round shank, good compatibility and easy to use.
- Applications - Square end mill can create slots (keyways or internal grooves), straight or square edge features, flat smooth surfaces, holes or for roughing, finishing and side milling operations. It is a milling cutter for machining abrasive materials like carbon steel, alloy steel, and titanium.
- Notes - Applicable machines: CNC machining center, engraving machine, precision engraving machine and other high-speed machines. Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Select an appropriate feed rate and cutting speed.
| Brand Name | HARFINGTON |
|---|---|
| Unit Count | 5.0 Count |
| End Cut Type | Square End |
| Finish Types | TiAlN |
| Manufacturer | HARFINGTON |
| Material Type | Carbide |
| Number of Flutes | 4 |
