Intelligent Insulation Resistance Tester Meter 1000VDC Insulation Testing Set Leakage Ammeter Current Test Table with Measuring Range 10k to 1TΩ (104~1012Ω) VFD Screen

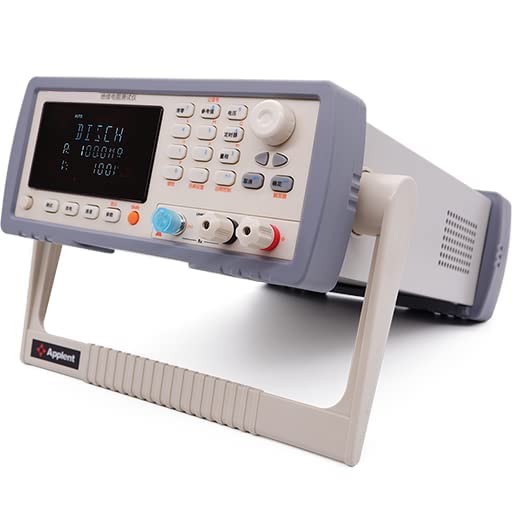

QIUSUO Intelligent Insulation Resistance Tester Meter 1000VDC Insulation Testing Set Leakage Ammeter Current Test Table with Measuring Range 10k to 1TΩ (104~1012Ω) VFD Screen Overview: ★The High Resistance Meter is an MCU controlled measuring instrument for direct readout of resistance and current. The voltage applied to the device under test (DUT) is programmable from 1 to 1000 volts. A pass/fail indicator provides a visual display of test results based on a preset limit. ★The High Resistance Meter is designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components. Features: *High brightness, ultra-clear four-color VFD display, multiple parameters are displayed at the same time. *Comparator output: The sorting result can be output through the optional Handler interface and RS232C. *Adjustable sound and display: Users can set the GD/NG sound and adjust the display brightness according to their needs. *Shockproof sheath. *Built-in RS232C serial interface. *Fool-style menuless operation interface. *Optional Handler interface. *Optional RS485 interface. *Optional 500V, 500mA pre-charging interface (IF YOU NEED,PLEASE CONTACT US) Specification: *Parameters:Leakage current & insulation resistance *Output Voltage:NC 1V～1000VDC *Accuracy:<10G: 3% ≥10G: 5% ≥100Ｇ: 10% *Measurement Range:10k-1TΩ(104~1012 Ω) *Display Max:9999 *Range:Automatic & Manual *Speed:55 times/s, 15 times/s, 3 times/s *Adjustment:short-circuit reset full range *Result Display:show, current, resistance, peak value, sorthing results *Charging Timer:999.9s *Charging Current:200mA max *Comparator:30 sets record,, GD/NG beep: GD,NG, OFF setting *Interface:RS-232C, Handler interface *Power Supply:Voltage:198VAC～240VAC Fre：50Hz Power :max 30VA *Dimension & Weight:264*107*350mm / 5KG *Accessories ATL507: Test fixture ; ATL801:RS232 cable *Other Functions:VFD 4 color display, Keyboard lock, data hold function Application: ●Used for field test or timed test and destructive test. ●Test the insulation resistance and leakage current of switchgear, relays, motors, generators and cables. ●Insulation resistance measurement of capacitors and other electronic components and equipment. ●Dielectric materials and insulation resistance measurement of wires and cables, etc. ●The best solution for capacitor sorting machines.

• Shockproof sheath.

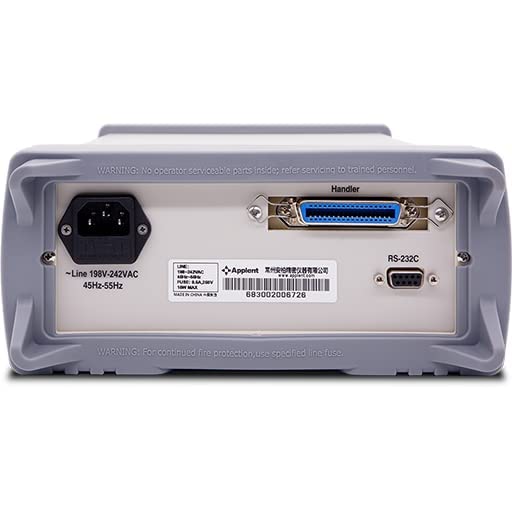

• Built-in RS232C serial interface. Optional RS485 interface.
• Fool-style menuless operation interface.
• Optional Handler interface.
• High brightness, ultra-clear four-color VFD display, multiple parameters are displayed at the same time.
