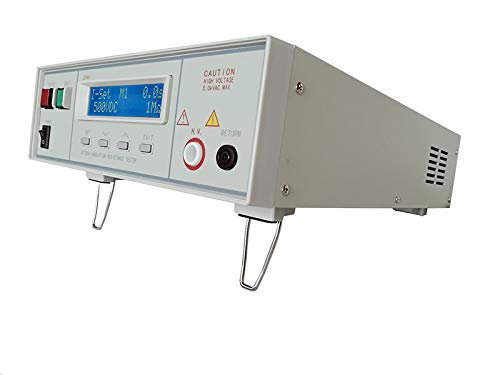

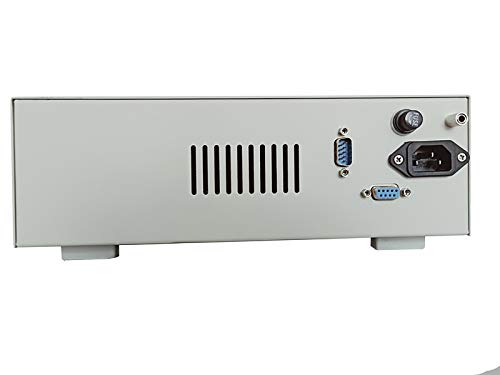

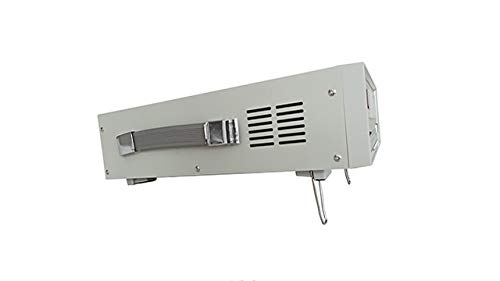

JK7200A Insulation Resistance Tester 10-1000VDC

JK7200A is the insulation resistance meter which is using high performance microprocessor control 。CNC test voltage: 10 v ~ 1000 v, 7 range test, the insulation resistance of the largest 1000 g Ω biggest display digits number 9999。High-speed test provides the best solutions for automated production assembly。Instrument has a sorting function, sorting ring set, also can be equipped with Handler interface，It is applied to the automatic sorting system to accomplish automatic assembly line testing。By the built-in RS232C interface, it can be used for remote control and data acquisition and analysis. Computer remote control instruction compatible SCPI（Standard Command for Programmable Instrument），efficient complete remote control and data acquisition function. Specifications Test ParameterInsulation ResistanceBasic Accuracy1%Output VoltageNumerical Control :10V～1000VDCMeasurement RangeResistance：1kΩ~1000GΩ (2%+2 Words)Reading9999RangeAutomaticCharging Current200ma（MAX）Measurement Speed8meas/SecDisplay ResultDirect Reading, Resistance, Peak, And The Result Of The SeparationCorrectionOpen Circuit Remove One ZeroCharging Timer999.9sComparator5 Set Of Records，GD/NGFail-OnGD、NG、InterfaceRS-232 HandlerPower RequirementVoltage：198VAC～240VAC Frequency：50Hz Power：Maximum 50VADimensions And WeightExternal Dimension（Mm）：310 (W)X110h)X390 (D)Inside Dimension： 280(W)X88(H)X370(D)Weight：5kgAccessoryTest Clips , Test Fixture Features ●A variety of parameters shows at the same time。●peak-value-holding function。●Full range open reset function。●The comparator output：Through RS232C output or Handler interface separation results.●Fail-on：can set up fail-on switch。●GD/NG fail-on和trigger mode：The external trigger, manual triggering, internal trigger and remote trigger。●Optional foot switch Application ●Electronic components, equipment insulation resistance testing。●The transistor leakage current test。●Dielectric materials and wire and cable insulation resistance test, etc
