Mini Brushless Motor External Rotor DC2-3V Micro Quiet Motor Fan Motor 7000RPM Brushless Motor with Drive Long Life Time

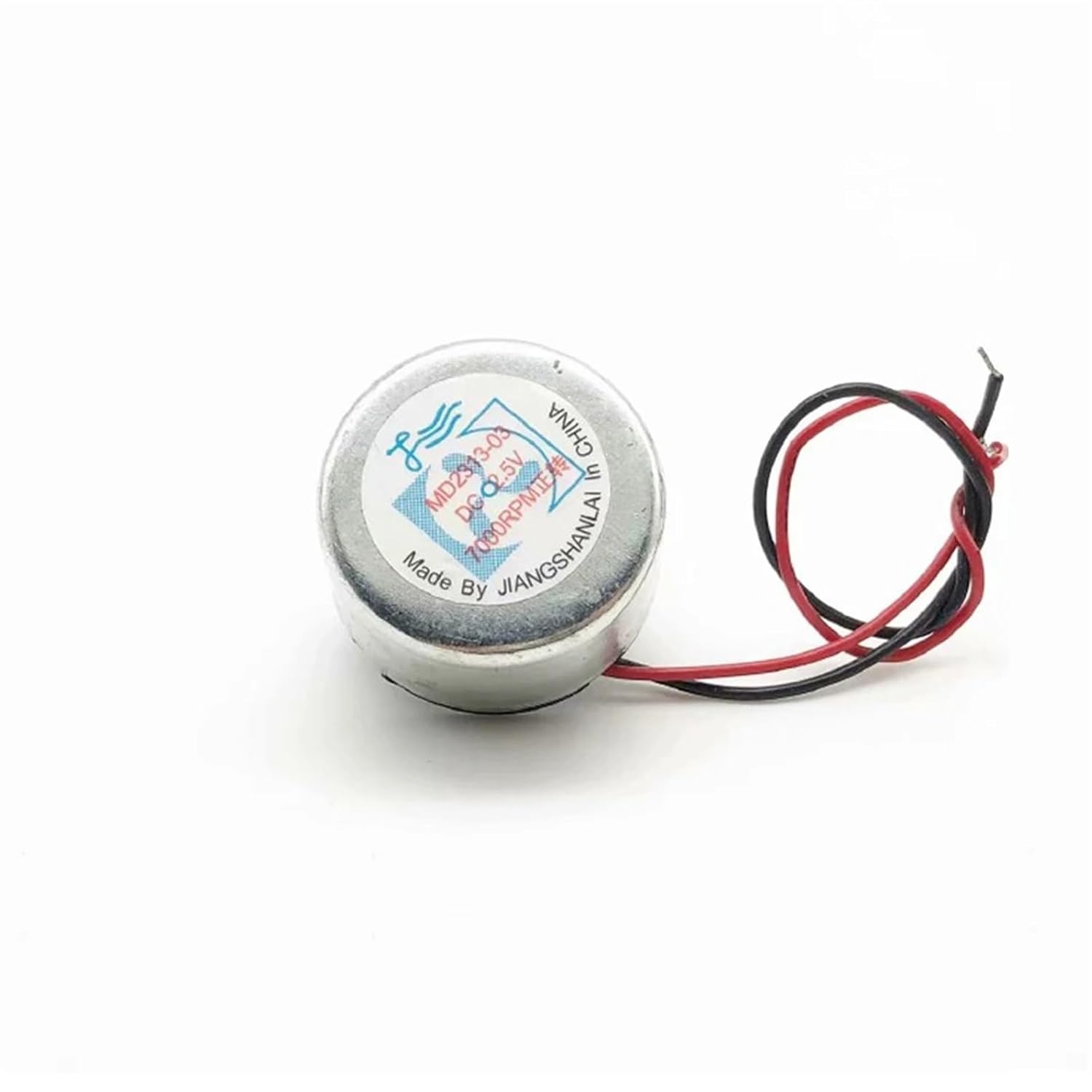

MotorsMini Brushless Motor External Rotor DC2-3V Micro Quiet Motor Fan Motor 7000RPM Brushless Motor with Drive Long Life TimeBrushless motor is its own driver board, do not need to connect any circuit board can be driven, the red line is connected to the positive terminal of the power supply, the black line is connected to the negative terminal of the power supply can drive it, the rated voltage is DC2.5V, the use of voltage DC2V-DC3V, and then the large voltage fuselage will vibrate. After testing: The biggest advantage of the brushless motor is that it runs very stable, the speed is very uniform, and it is quiet, long life, and the fuselage will hardly heat up for a long time, it is estimated that the brushless motor is used in a sun hat or a relatively high-end small fan. However, the positive and negative poles of the brushless motor must not be reversed, and do not exceed the high rated voltage, otherwise it is easy to burn out.The label on the motor indicates that the motor 2.5V speed is 7000 RPM, but the actual test is higher than this speed.Specifications:Test speed:DC2V no-load current: 0.16A No-load speed: 6500 RPMDC2.5V no-load current: 0.19A No-load speed: 8500 RPMDC3V no-load current: 0.24A No-load speed: 10000 RPMRated voltage: DC2.5VOperating voltage: 2V-3VConnection method: the red line is connected to the positive electrode; The black wire connects to the negative electrode. Body size: 23*13mmLine length: about 100mmWeight: 14gNote:1. Due to the light and screen difference, the item's color may be slightly different from the pictures.2. Please allow 1-3cm differences due to manual measurement.Package Included:1x Motor==========
