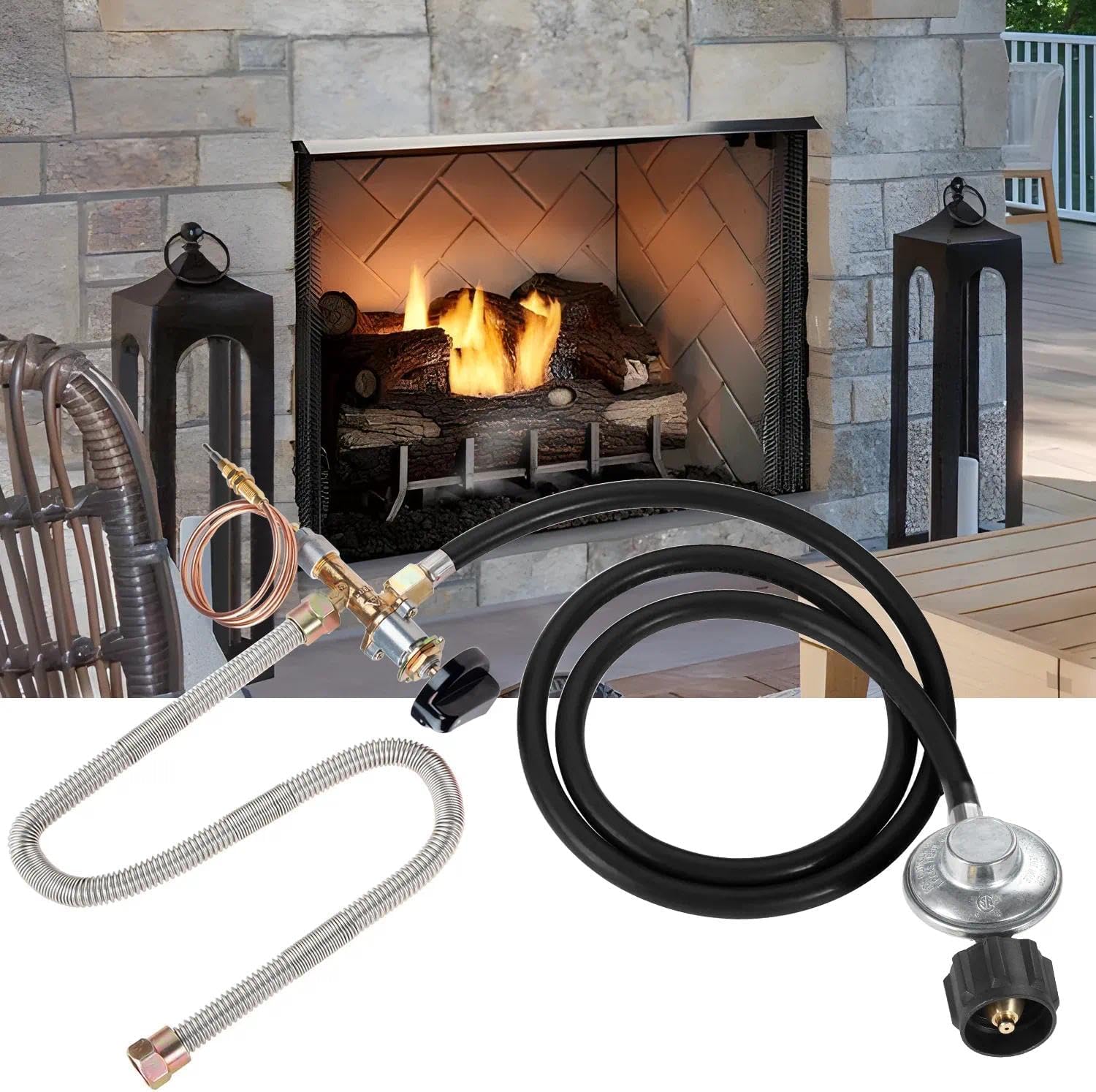

Propane Gas Fire Pit Kit, 5FT Propane Hose with Regulator, Grill Replacement Parts,Fireplace Safety Valve Control System, Max 50000 BTU

When you research a DIY fire pit, propane regulator comes into view. This adjustable propane regulator kit nearly covers everything you need, a gas control valve, thermocouple, propane regulator and hose, and whistle free corrugated gas line. You can use the whole kit directly or apply each component separately to various appliance How To Install 1.Connect the 5 Feet regulator with hose to your 20-100lbs propane tank.2.Connect the the female adapter to the inlet of fire pit safety control valve and tighten it firmly. 3.Insert the plastic control knob into your fire pit control panel and make the valve chrome sleeve exposed outside4.Connect the corrugated gas line to outlet of brass valve.5.Attach the flexible corrugated gas line to your current burner inlet or air mixer nozzle(not included).How To Install Thermocouple:1.Install the thermocouple tip on a board and use two nuts to fix it. 2.Keep the tip about 5mm from the burner hole.3.Fix the thermocouple nut M8 on the valve end tightly. 4.Connect two flat terminals well with the current tilt switch terminals.5.Turn on the gas and push your valve 5-10s till the thermocouple end is heated.Release your hand and finished. Friendly Reminder If failed, Please check if your thermocouple is heated on flame. if the thermocouple end is well connected with valve.if the terminals connect tilt switch well.Specifications: Material: brass + stainless steel Low Working Pressure Max: 1/2 PSI（65mbar）Max BTU rating: 50000Control Valve In & Out with 3/8" Male Flare threadPackage Included: 1 x gas control valve with knob 1 x 23.62in thermocouple1 x 5ft LP propane hose with regulator1 x 24in fire pit whistle free corrugated gas line

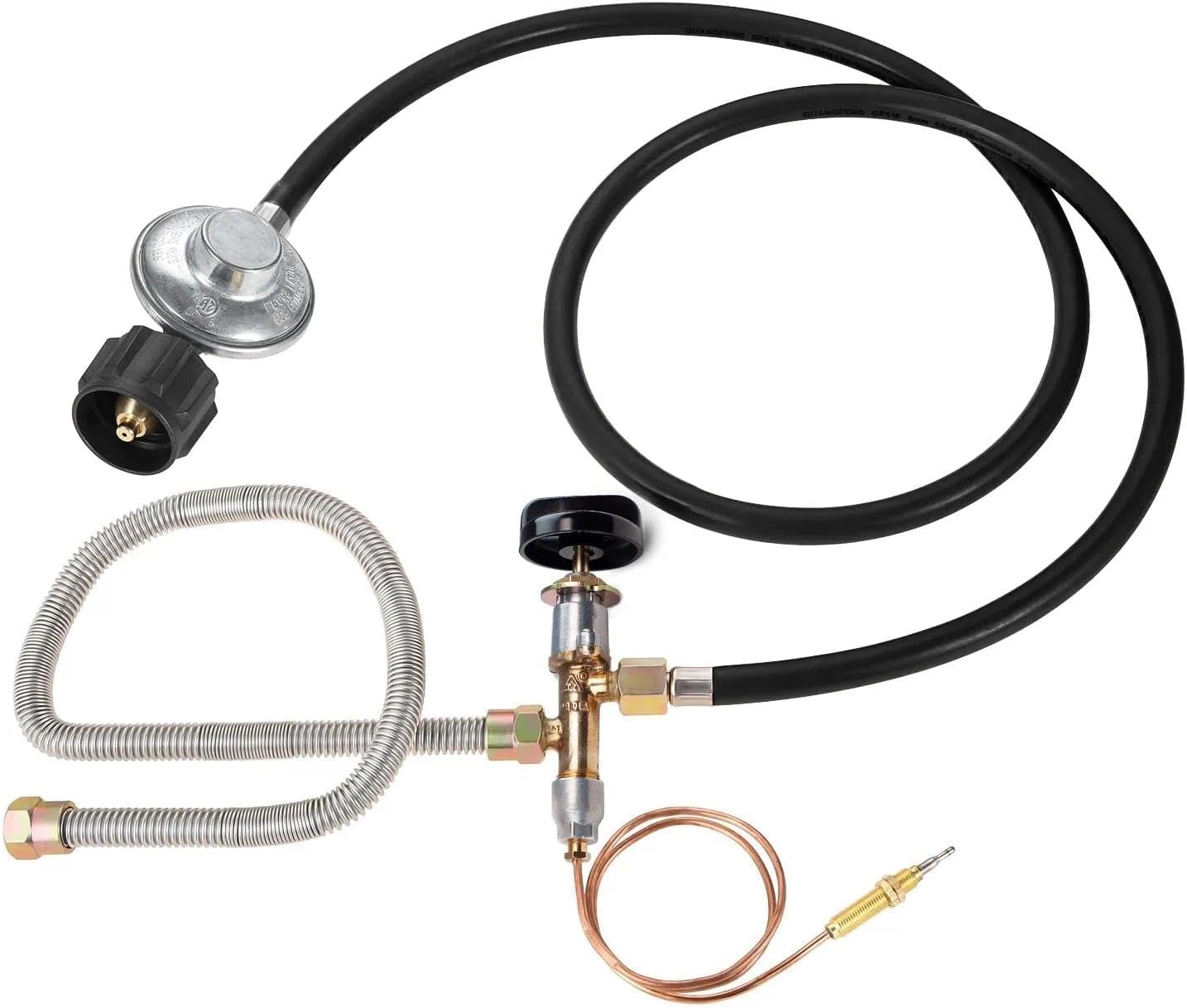

• Fire Pit Flame Failure Safety Control Valve Kit: This propane tank adapter kit consists of one gas control valve with knob(maximum BTU level: 50000; working pressure: 65MBAR), one 23.62" thermocouple, one 5 ft LP propane regulator with hose, and one 24" whistle free corrugated gas line
• Specification: The gas control valve comes with 3/8" flare Inlet & Outlet. Thermocouple has M8*1 threaded head. The 5FT LP propane hose features QCC tank connections and 3/8-inch flare fitting. Stainless steel hose: 1/2" OD x 3/8" ID. Bakelite knob: OD 38mm, D shaft 6.1mm
• Safe To Use: Crafted from high-grade stainless steel and brass for long-lasting performance. This fire pit kit is capable of offering stable gas pressure, air tight connection between fire pit and propane tank. Provide you peace of mind during use
• Range Of Application: This propane regulator kit is only for propane(Max. working pressure: 1/2PSI), NOT FOR NATURAL GAS. Can be applied to gas grill, fireplace, fire pit, and propane gas heater
• Friendly Reminder: Please keep the propane adapter hose away from cooking area to avoid melting or fire risks. The air mixer valve and elbows are not provided
