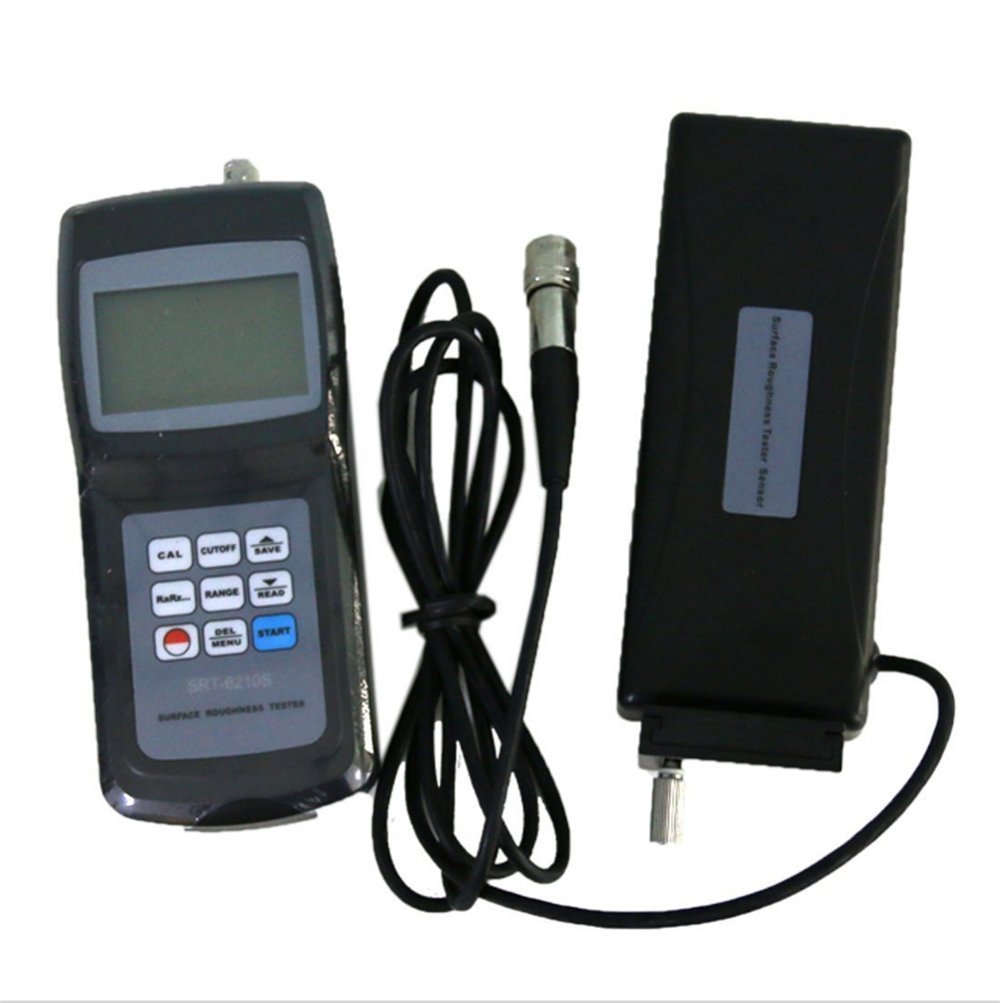

Surface Roughness Tester Meter Gauge 4 Parameters Ra Rq Rz Rt Diamond Probe 0.005~16.00µm Ra Rq 0.020 to 160µm Rz Rt

Specification Standards： GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1 Parameters： Ra,Rq,Rz,Rt Measuring Range ： Ra,Rq:0.005~16.00µm Rz,Rt:0.020~160.0µm /0.020~629.9µinch /0.078~6299µinch Accuracy ：<10% Fluctuation of Display Value： <6% Resolution ：0.001/0.01/0.1 Sensor ： Radius of Probe Pin： 5µm Material of Probe Pin ：Diamond Measurement Force of Probe： 4mN(0.4gf) Probe Angle ：90º Vertical Radius of Guiding Head ：48 mm Maximum Driving Stroke ：17.5mm/0.7inch Cutoff length(l) ：0.25mm,0.8mm,2.5mm Driving Speed ： Sampling： When Length=0.25mm,Vt=0.135 mm/s When Length=0.8mm,Vt=0.5mm/s When Length=2.5mm,Vt=1mm/s Returning： Vt=1mm/s Profile Digital Filter： RC,PC-RC,GAUSS,D-P Evaluation Length ：1~5L Optional Data Memorize： 7 Groups Operating Conditions： Temp:Temp:0~50ºC Humidity:<80%RH Power Supply ：4x1.5V AAA(UM-4)Battery ( No Battery Included ) Dimensioms ： Main Unit Size:149x67x29mm Measuring Base Size:185x56x47mm Weight 485g Standard Accessories ： Main Unit Standard Sample Plate SSP-100 Standard Sensor SRP-100 Small Screwdriver Measuring Base Carrying Case ( B09 ) Operation Manual Optinal Accessories： RS-232C Cable with Software Bluetooth Adapter with Software Extension Rod SER-150 Groove Stylus SSP-110 Curvature Probe SRP-120 Measurement Stand SRS-1

• Accuracy ：<10%
• Parameters： Ra,Rq,Rz,Rt
• Fluctuation of Display Value： <6% Resolution ：0.001/0.01/0.1
• Standards： GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
• Measuring Range ： Ra,Rq:0.005~16.00µm Rz,Rt:0.020~160.0µm /0.020~629.9µinch /0.078~6299µinch
