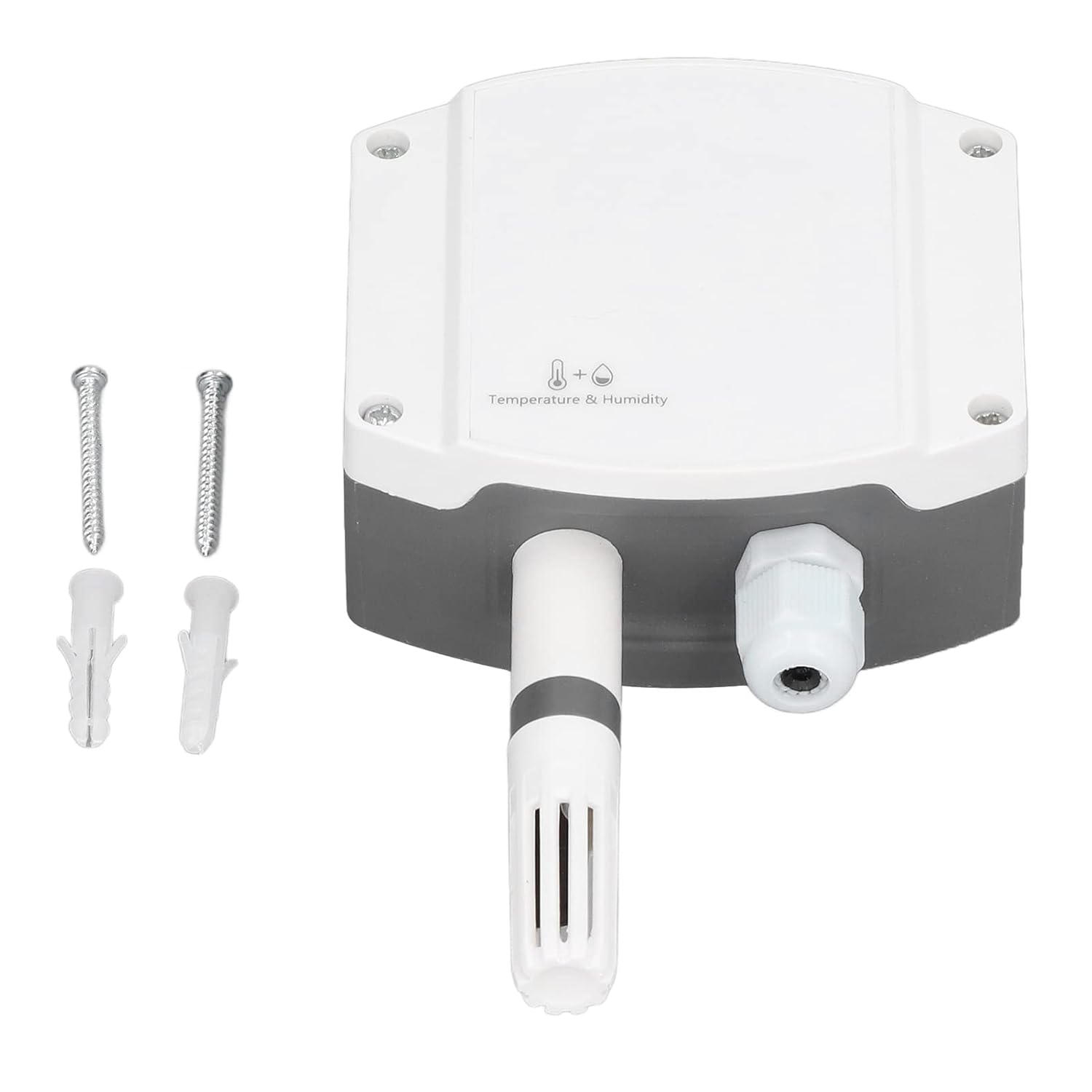

Temperature and Humidity Transmitter, 4-20mA DC 10-30V High Accuracy Analog Temperature Humidity Transmitter Sensor IP65 Wall Mounted Humidity Sensor for Industrial, Agricultural, Greenhouse

Specification: Item Type: Temperature Humidity Transmitter Product Size: Approx. 147 x 88 x 41 mm / 5.8 x 3.5 x 1.6 in Output Interface Wiring: The device is equipped with 2 independent analog outputs as standard Weight: Approx. 157g / 5.5oz Specific Wiring: Circuit Identification Instruction Power Supply VCC Positive Power Supply GND Negative Power Supply Output TH Positive Temperature RH Positive Humidity (Note: The device does not provide a communication line by default) Parameter: Maximum Power Consumption Current Output 1.2W Voltage Output 1.2W Temperature Range -40℃~+120℃, default -40℃~+80℃ Humidity Range 0%RH-100%RH Transmitter Circuit Working Temperature And Humidity -20℃~+60℃, 0%RH~95%RH A9:C28(non B25condensing) Probe Operating Temperature -40℃~+120℃, default -40℃~+80℃ Probe Working Humidity 0%RH-100%RH Long Term Stability Humidity ≤1%RH/y Temperature ≤0.1℃/y Response Time Humidity ≤8s(1m/s wind speed) Temperature ≤25s(1m/s wind speed) Output Current Output 4-20mA Load Capacity Voltage Output Output resistance≤250Ω Current Output ≤600Ω Hole Size 70mm/2.8in Parameter Settings Set By Software Product Model: RS- Company Codes WS- Temperature And Humidity Transmitter, Sensor 120- 4~20mA Current Output Package List: 2 x Screw 2 x Expansion Tube 1 x Transmitter1 x Manual
