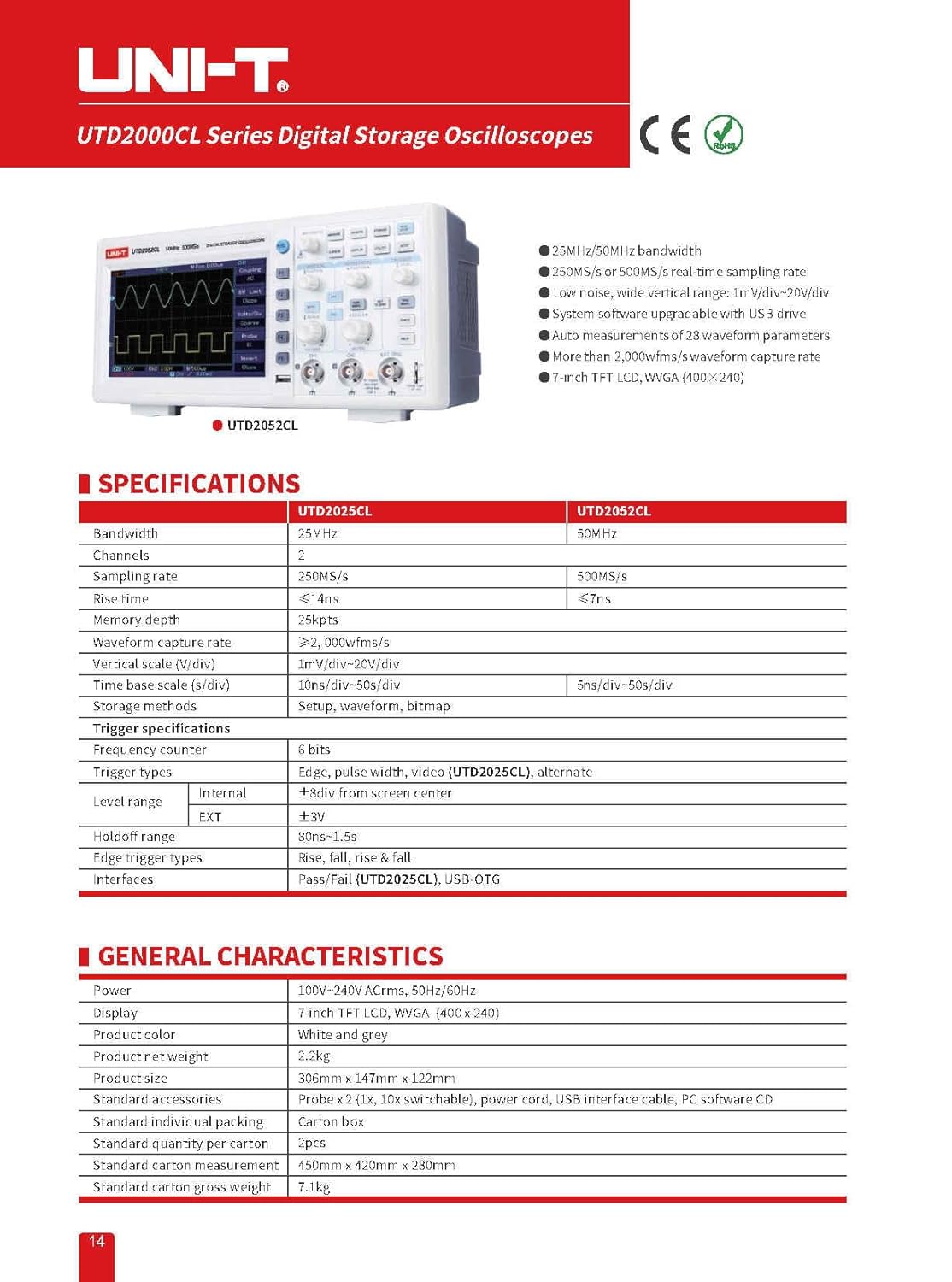

UNI-T UNI-Trend UTD2025CL Digital Oscilloscopes 2 Channel 25MHZ,7 inches Widescreen LCD displays(UTD2025CL)

UTD2000CL+/CL SERIES▽ 50MHz to 100MHz BANDWIDTH▽ 2 ANALOG CHANNELS▽ 500MSa/s REAL-TIME SAMPLE RATE▽ 64kpts MAX. MEMORY DEPTH▽ 5,000wfms/s WAVEFORM CAPTURE RATE▽ UTD2152CL 150 MHz 2CH 500MSa/s 64 kpts 5,000 wfms/s ▽ UTD2072CL 70 MHz 2CH 500MSa/s 64 kpts 5,000 wfms/s▽ UTD2052CL 50 MHz 2CH 500 MSa/s 25 kpts 2,000 wfms/s▽ TD2025CL 25 MHz 2CH 250 MSa/s 25 kpts 2,000 wfms/s▽ UTD2102CL+ 100MHz 2CH 500MSa/s 64 kpts 5,000 wfms/s▽ UTD2052CL+ 50MHz 2CH 500MSa/s 64 kpts 5,000 wfms/s▽ Math function: Support addition, subtraction, multiplication, division, and waveform calculation functions▽ ZOOM function: You can observe the overall situation and details of the waveform▽ XY mode (also called Lissajous graphics mode): Can measure the phase difference between two signals of the same frequency▽ Brand new AUTO strategy: The state after AUTO can be set▽ Standard square wave output: With 10hz, 100hz, 1Khz, 10Khz local signal standard square wave output Automatic parameter measurement▽ With 34 kinds of automatic parameter measurement, 5 groups of customizable parameter display Grade Display: Grade display can view the worst case of changing waveforms, capture rare and abnormal signals▽ Alternate trigger: It can be effectively applied to trigger signals without frequency correlation

• UTD2000CL+/CL SERIES 50MHz to 100MHz BANDWIDTH 2 ANALOG CHANNELS 500MSa/s REAL-TIME SAMPLE RATE 64kpts MAX. MEMORY DEPTH 5,000wfms/s WAVEFORM CAPTURE RATE Math function Support addition, subtraction, multiplication, division, and waveform calculation functions
• ZOOM function You can observe the overall situation and details of the waveform
• XY mode (also called Lissajous graphics mode) Can measure the phase difference between two signals of the same frequency
• Brand new AUTO strategy The state after AUTO can be set
• Standard square wave output With 10hz, 100hz, 1Khz, 10Khz local signal standard square wave output
