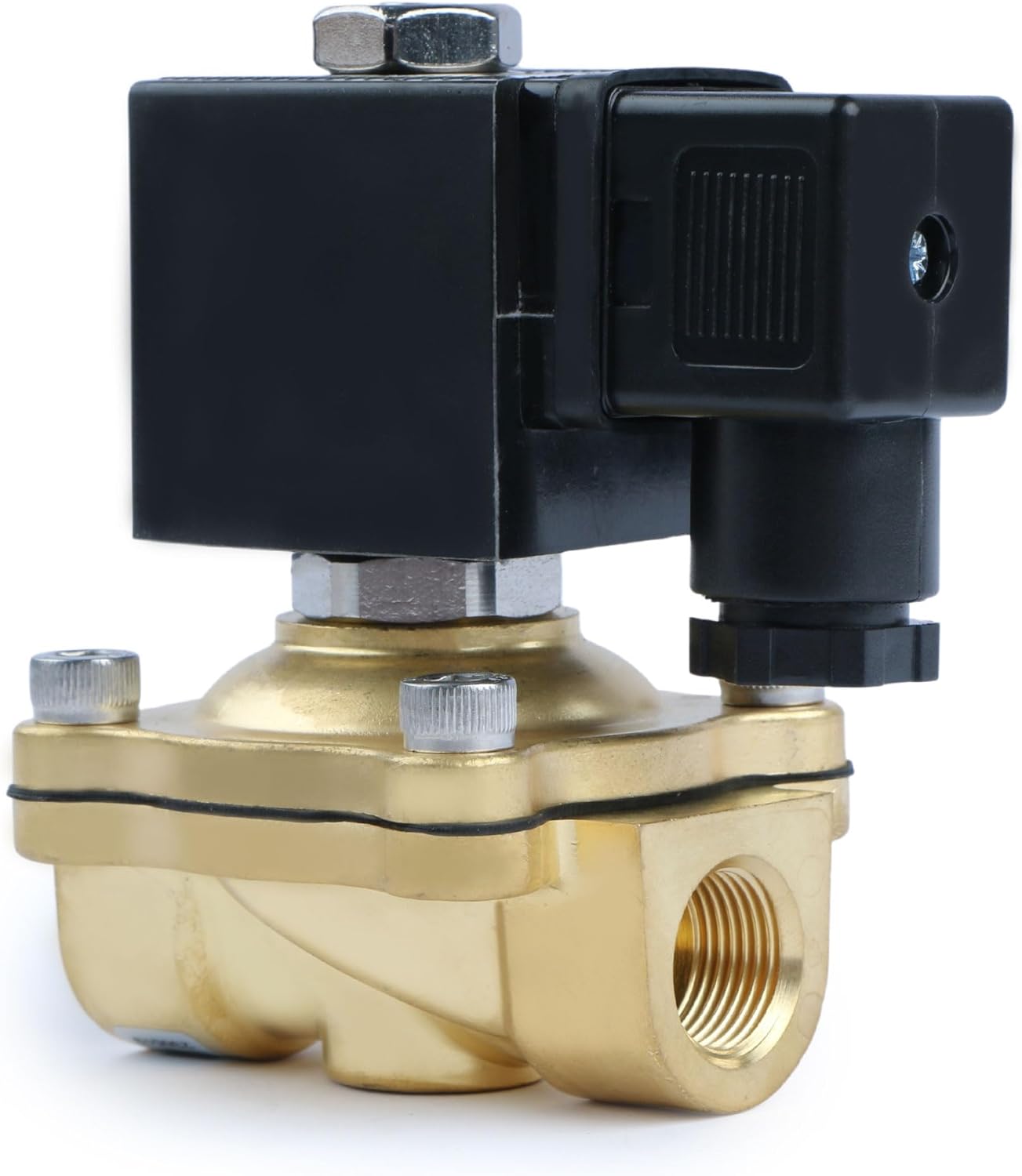

U.S. Solid 3/8" Brass Solenoid Valve - 24V AC, Normally Closed, 10 Bar Electric Valve for Water, Air, Diesel
Product details
| Management number | 211088602 | Release Date | 2026/04/04 | List Price | $14.44 | Model Number | 211088602 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- SPECIFICATIONS: With a pressure rating of 0.1 - 10 bar and a temperature range of -30 to 150°C, the valve is suitable for most applications. The normally closed valve has a 3/8 inch NPT threaded connection and operates on AC 24V +/-10%.
- EXACT CONTROL: The electric solenoid valve can be perfectly adjusted to the desired parameters thanks to the precise mechanism. You will get exactly the flow rate you need without any fluctuations.
- HIGH QUALITY: For our U.S SOLID 24V solenoid valve, we use sturdy brass, which in combination with the VITON seal ensures special durability. The seal can withstand very high temperatures and is resistant to chemicals with optimal sealing.
- IMPORTANT: The valve must be installed horizontally, the arrow indicates the direction of flow. To ensure long life, the solenoid valve should not be operated for more than 8 hours.
- VERSATILE: The electro valve can be used in various fields such as home, commercial and medical. Due to the special features, perfect flow rate adjustment is achieved.
| UPC | 888107111665 |
|---|---|
| Size | 3/8 Inch |
| Brand Name | U.S. Solid |
| Unit Count | 1.0 Count |
| Valve Type | solenoid valve |
| Thread Size | 3/8 inch |
| Thread Type | NPT |
| Manufacturer | U.S. Solid |
| Model Number | 888107111665 |
| Material Type | Brass |
| Connector Type | Threaded |
| Exterior Finish | Brass |
| Number of Ports | 2 |
| Maximum Pressure | 145 Pound per Square Inch |
| Specification Met | ASME B16.34, CE, UL |
| Inlet Connection Size | 0.38 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.38 Inches |
| Outlet Connection Type | NPT |
